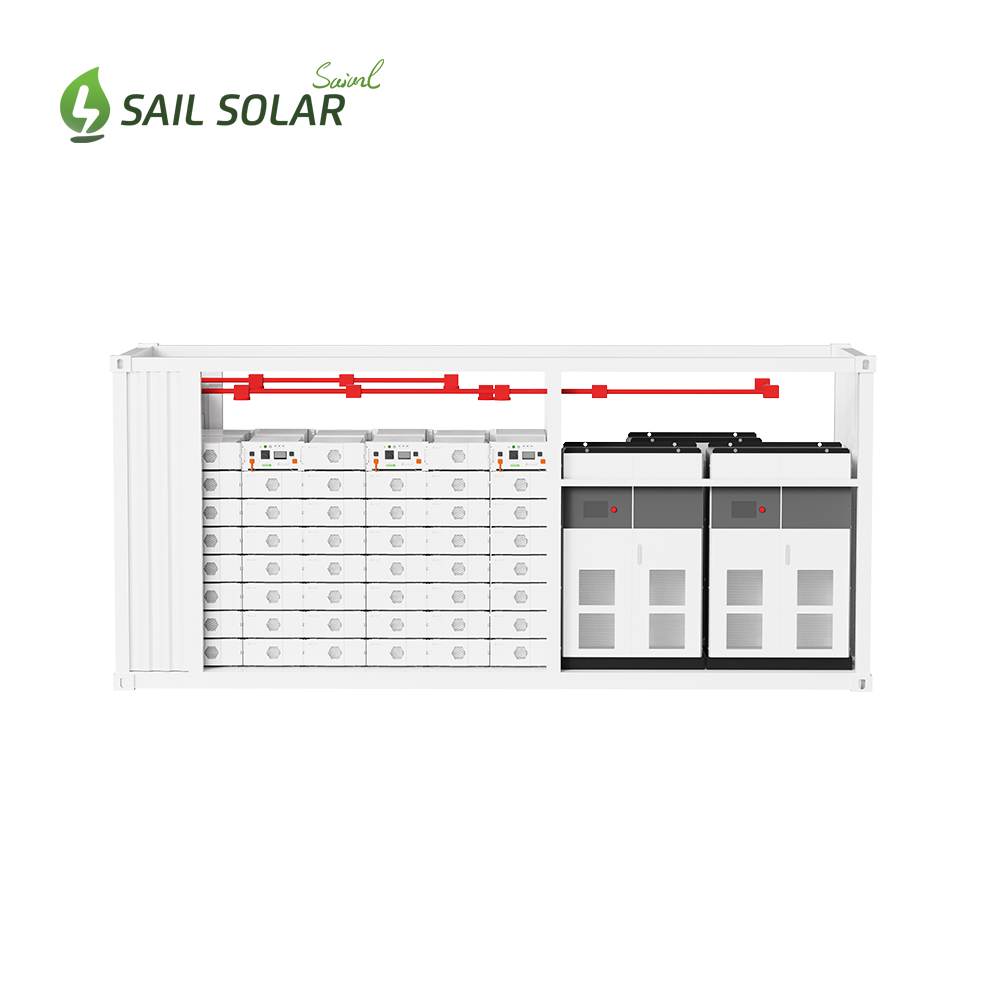

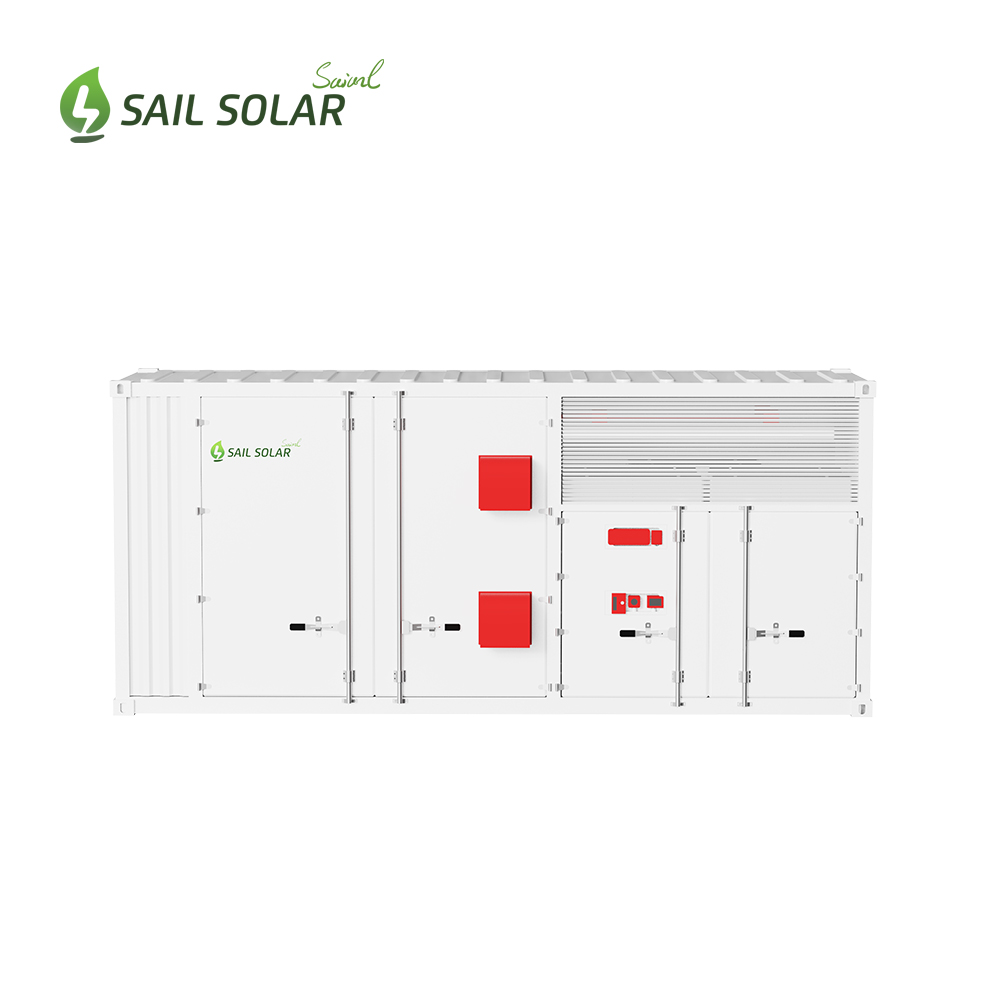

The 1MW / 2000kWh Containerized Energy Storage System (ESS) is a fully integrated, utility-grade energy solution designed for commercial, industrial, and grid-support applications. Installed in a standard 40-foot container, the system combines two 500kW Megarevo Power Conversion Systems (PCS) with a 2MWh high-voltage lithium battery system, delivering reliable, flexible, and intelligent energy management.
Merknaam :
Sail SolarType :
BESS-1000KW/2000KWHNominale spanning :
420-850VBatterij capaciteit :
1000KW/2000KWHAantal cycli :
>6000 Cycle @80% DoDEfficiëntie van opladen :
100% @0.2CEfficiëntie van ontlading :
96~99% @1CCommunicatie :
RS485/RS232/CANKleur en OEM :
Black/ White or customizedGarantie :
10 Years
Comprehensive Safety Protection
The ESS container is designed with multi-layer safety systems, including:
Intelligent Battery Management System (BMS)
Precision temperature control with industrial HVAC
Fire detection and automatic fire suppression system
Electrical protection, fault isolation, and emergency stop
Wide Range of Applications
This 40FT containerized ESS is suitable for:
Commercial & industrial facilities
Renewable energy plants (PV + Storage / Wind + Storage)
Microgrid systems
Grid ancillary services
Diesel generator hybrid projects
Two 500kW Megarevo bidirectional PCS units are integrated to form a total output of 1MW. This dual-PCS design provides:
High conversion efficiency and stable performance
Flexible operation with independent or parallel control
Strong grid support functions (frequency and voltage regulation)
Seamless switching between grid-tied and off-grid modes
The Megarevo PCS technology ensures fast response, high reliability, and excellent compatibility with large-scale lithium battery systems.
The system is equipped with a 2000kWh high-voltage lithium battery storage system designed for high efficiency, long cycle life, and stable performance. It is ideal for peak shaving, load shifting, backup power, and renewable energy smoothing. Advanced thermal management ensures safe and consistent operation under various environmental conditions.
This system adopts an AC-coupled architecture, where the battery energy storage system connects to the AC bus through 2*500kW Megarevo bidirectional PCS, while photovoltaic (PV) generation (if present) is connected via separate grid-tied inverters. An intelligent Energy Management System (EMS) coordina*tes power flow between the grid, loads, PV system, and battery storage.
