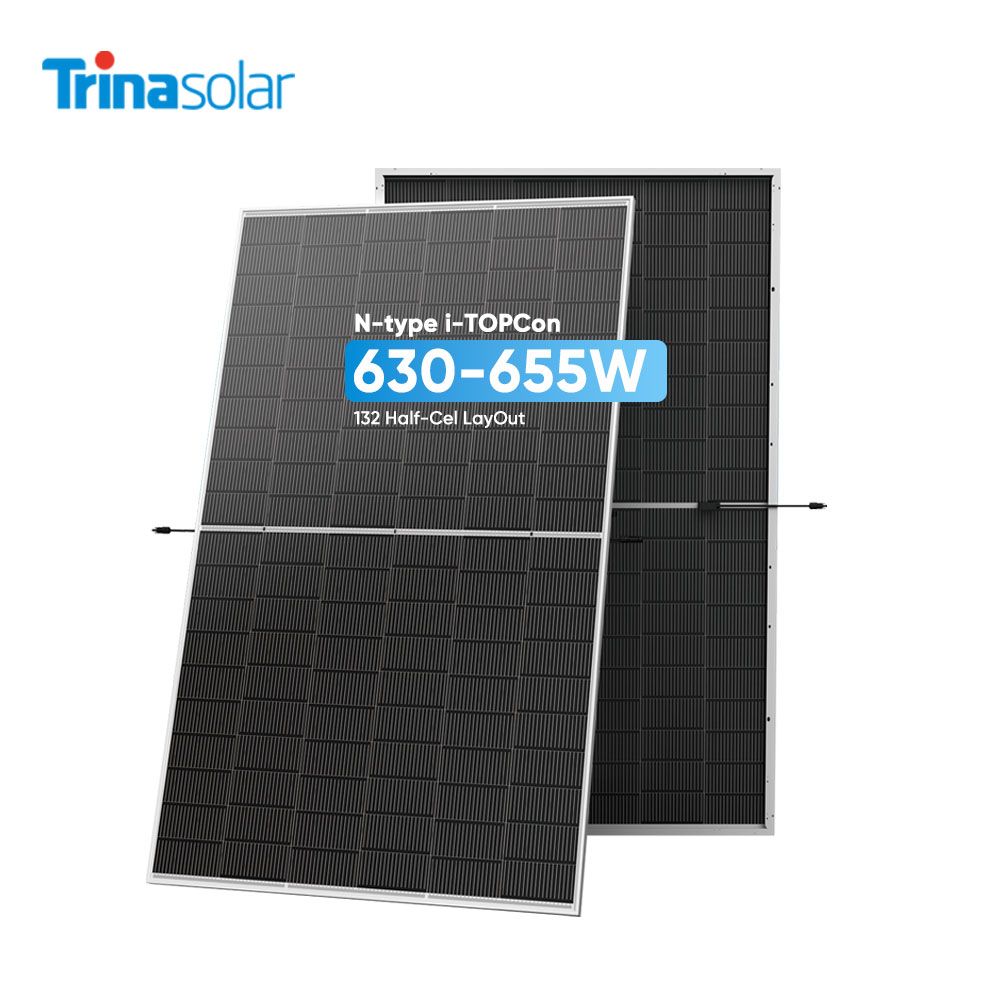

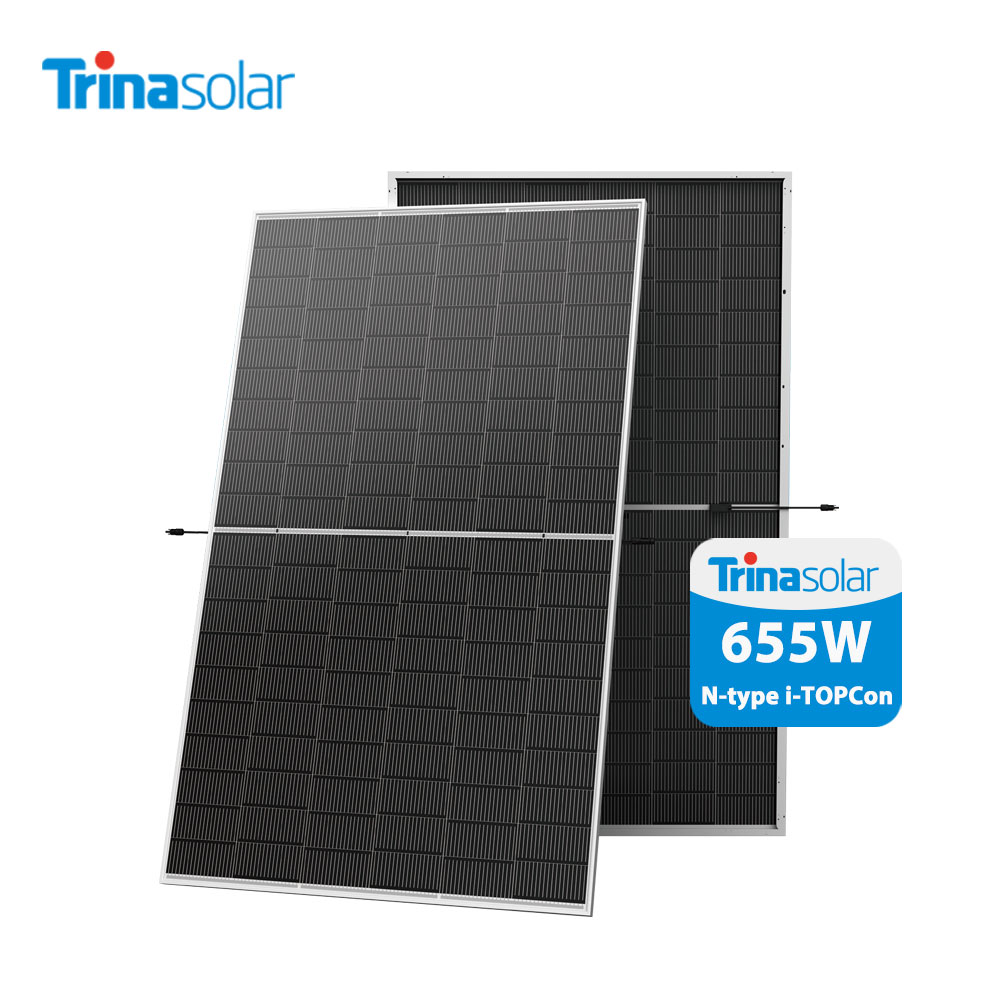

The Trina Solar TSM-NEG20C.20 is an ultra-high-power photovoltaic module featuring cutting-edge N-type i-TOPCon cell technology. With a power output range of 630W to 655W, this module is designed for utility-scale solar applications, Commercial and factory. Providing efficient energy for energy projects.
Merknaam :
TrinaVermogensbereik :
630W-655WAfmetingen module :
2172×1303×33 mmGewicht :
34.9 kgGlas :
2.0 *2.0mmKader: :
Aluminum Alloyaansluitdoos: :
IP 68 ratedKabel :
Photovoltaic Technology Cable 4.0mm2Max. Efficiëntie :
23.1Wind-/sneeuwbelasting :
5400Pa/2400PaAantal cellen :
132 CellsVerbinder :
MC4 EVO2 / TS4 PLUS / TS4*
-High Power Output: Delivers up to 655W with a module efficiency exceeding 23.1%, reducing the levelized cost of electricity (LCOE).
-N-type i-TOPCon Technology: Ensures superior performance in terms of temperature coefficient, low light response, and long-term reliability.
-Low Degradation: First-year degradation as low as 1%, and annual degradation of just 0.4%, ensuring strong power retention over time.
-Enhanced Bifaciality: High bifaciality factor increases rear-side power gain, improving energy yield on suitable installations.
-Robust and Reliable: Engineered with high mechanical load resistance and certified to withstand harsh environmental conditions, including wind and snow loads.
-Larger Wafer Format (210mm): Enables higher module output and reduces BOS (Balance of System) and LCOE.
The module is engineered to maximize energy generation, especially in large ground-mounted systems. Its high module efficiency, superior temperature performance, and excellent bifaciality enable higher energy yields even under challenging environmental conditions. The bifacial glass-glass design allows additional power generation from the rear side, increasing the total output of the system.
Product Parameters(STC)
| Module Type | TSM-NEG20C.20 630W | TSM-NEG20C.20 635W | TSM-NEG20C.20 640W | TSM-NEG20C.20 645W | TSM-NEG20C.20 650W | TSM-NEG20C.20 655W |
|
Power Tolerance-PMAX(W)
|
0 ~ +5
|
|||||
|
Maximum Power Voltage-VMPP(V)
|
36.6
|
36.8
|
37.0
|
37.2
|
37.4
|
37.6
|
|
Maximum Power Current-IMPP(A)
|
17.22
|
17.26
|
17.30
|
17.34
|
17.38
|
17.43
|
|
Open Circuit Voltage-VOC(V)
|
43.9
|
44.2
|
44.5
|
44.8
|
45.1
|
45.4
|
|
Short Circuit Current-ISC(A)
|
18.24
|
18.27
|
18.30
|
18.33
|
18.36
|
18.39
|
|
Module Efficiency η m (%)
|
22.3
|
22.4
|
22.6
|
22.8
|
23.0
|
23.1
|
|
Operational Temperature
|
-40~+85ºC
|
|||||
|
Maximum System Voltage
|
1500V DC (IEC)
|
|||||
|
Max Series Fuse Rating
|
35A
|
|||||
|
Temperature Coeffcient of PMAX
|
- 0.29%/°C
|
|||||
|
Temperature Coeffcient of VOC
|
- 0.24%/°C |
|||||
|
Temperature Coeffcient of ISC
|
0.04%/°C |
|||||
