The Deye GB-L Pro is an advanced energy storage battery system purpose-built for European households demanding the highest standards of safety, efficiency, and intelligent monitoring in their battery storage solutions. Available in multiple configurations from GB-L8 PRO to GB-L24 PRO, it's the lithium iron phosphate batteries for solar storage solution that combines cutting-edge engineering with proven reliability. At its core, the GB-L Pro utilizes high-voltage stack architecture with series-connected 4 kWh modules at 102.4 V nominal voltage, operating across a system range of 166.4 V to 700 V — making it a truly versatile battery power storage system capable of adapting to diverse energy requirements.
Merknaam :
DeyeType :
Lithium BatteryNominale spanning :
166.4 V~700 VBatterij capaciteit :
40AHAantal cycli :
6000Efficiëntie van opladen :
0.5CEfficiëntie van ontlading :
0.5CCommunicatie :
CAN2.0, RS485Kleur en OEM :
White&SupportedGarantie :
10 years
Product Detailed Introductions
-High Safety Standards: Equipped with explosion relief and fire protection devices for enhanced safety
-Efficient Design: High-voltage stack configuration with series-connected modules for improved efficiency
-Thermal Management: Continuous temperature monitoring of critical components
-Wide Temperature Operation: -20°C to 55°C, suitable for various climates
-Environmentally Friendly: IP65 rating for dust and water resistance and eco-friendly LiFePO4 chemistry
-Intelligent Monitoring: Remote firmware updates and real-time battery status notifications via LCD display
-Versatile Configurations: Multiple models available (GB-L8 PRO to GB-L24 PRO) to meet varying energy needs
Support Multiple Battery System Solution

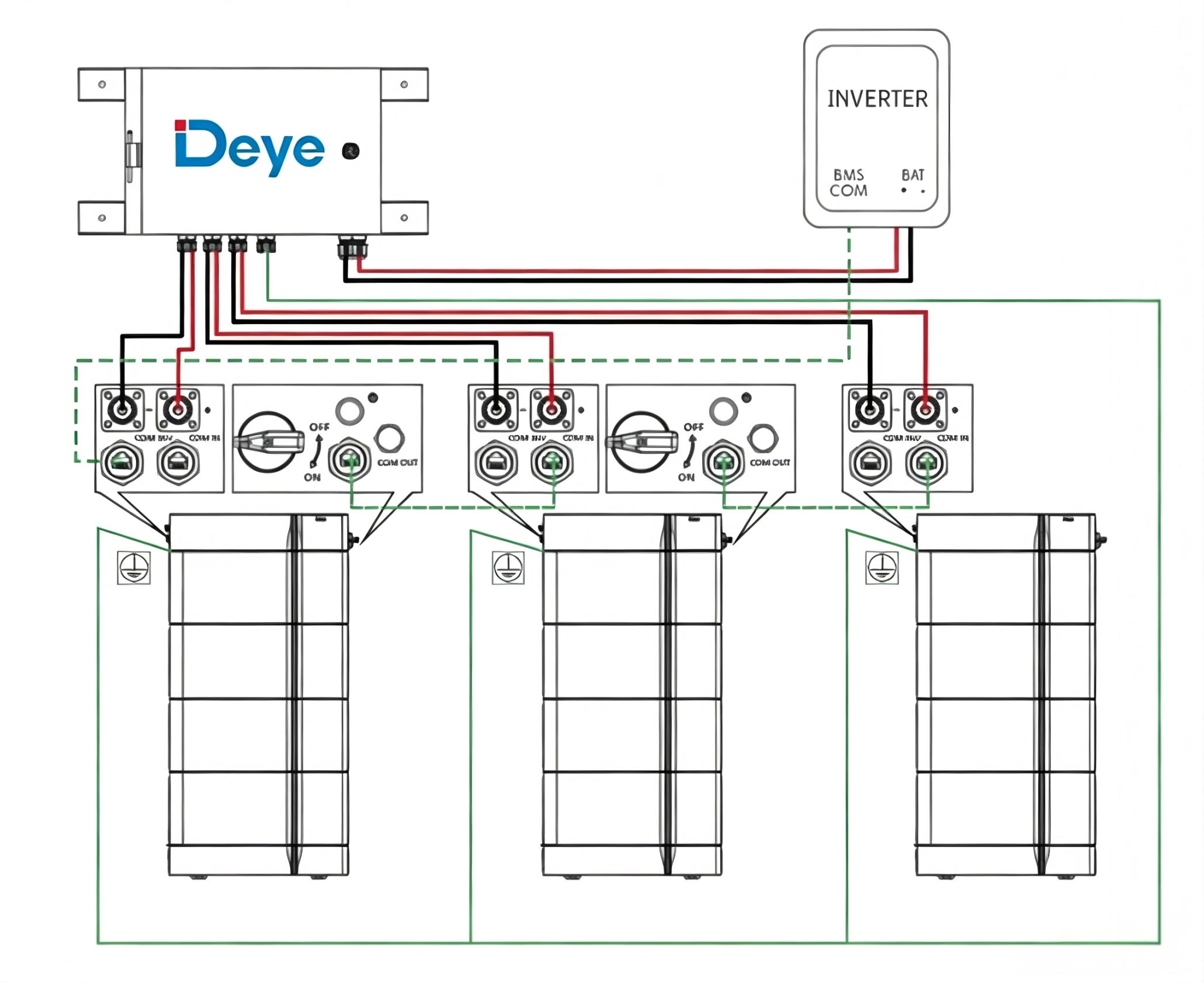

If multiple battery modules need to be connected in parallel, please refer to the right figure. After single cluster battery modules are connected, takes positive and negative connection cables fromeachcluster battery’s high voltage box connect to the external junction box.
Note: 1. The maximum number of battery clusters shall not exceed 16. 2. Before verifying that the battery system is fully connected, ensure that all battery switches are off.
Product application solutions

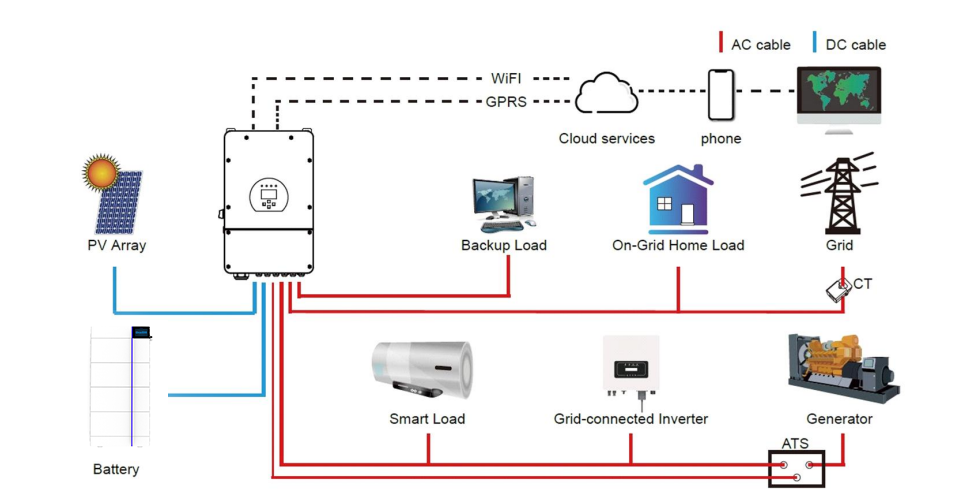

The left illustration shows basic application of this battery. It also includes devices to have a complete running system.
-Generator or Utility
-PV modules
-Hybrid Inverters (Charge & Discharge)
With a wide range of applications and diverse energy solutions, it meets personalized energy needs.
