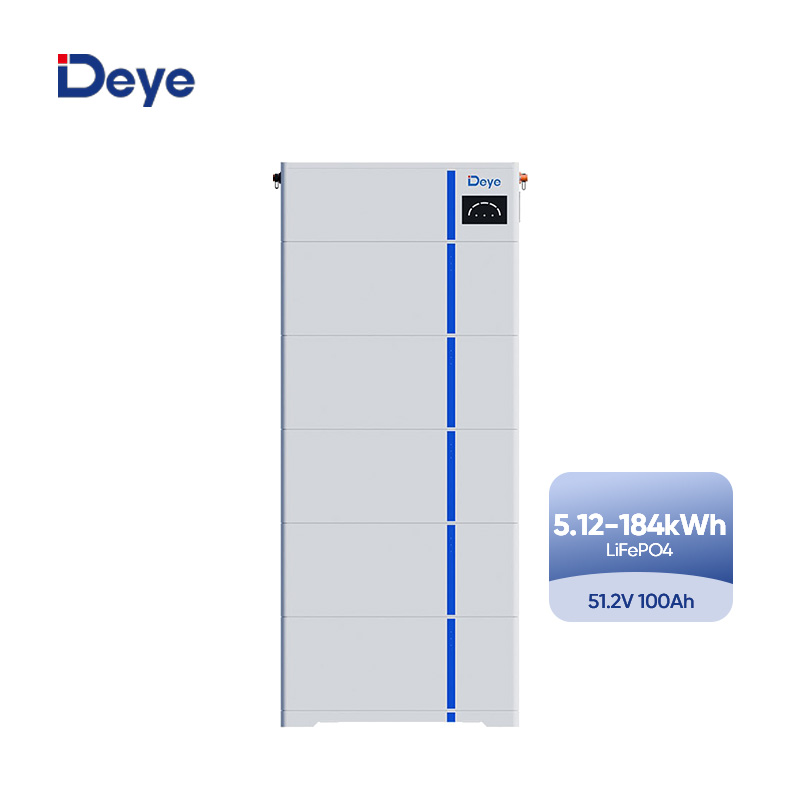

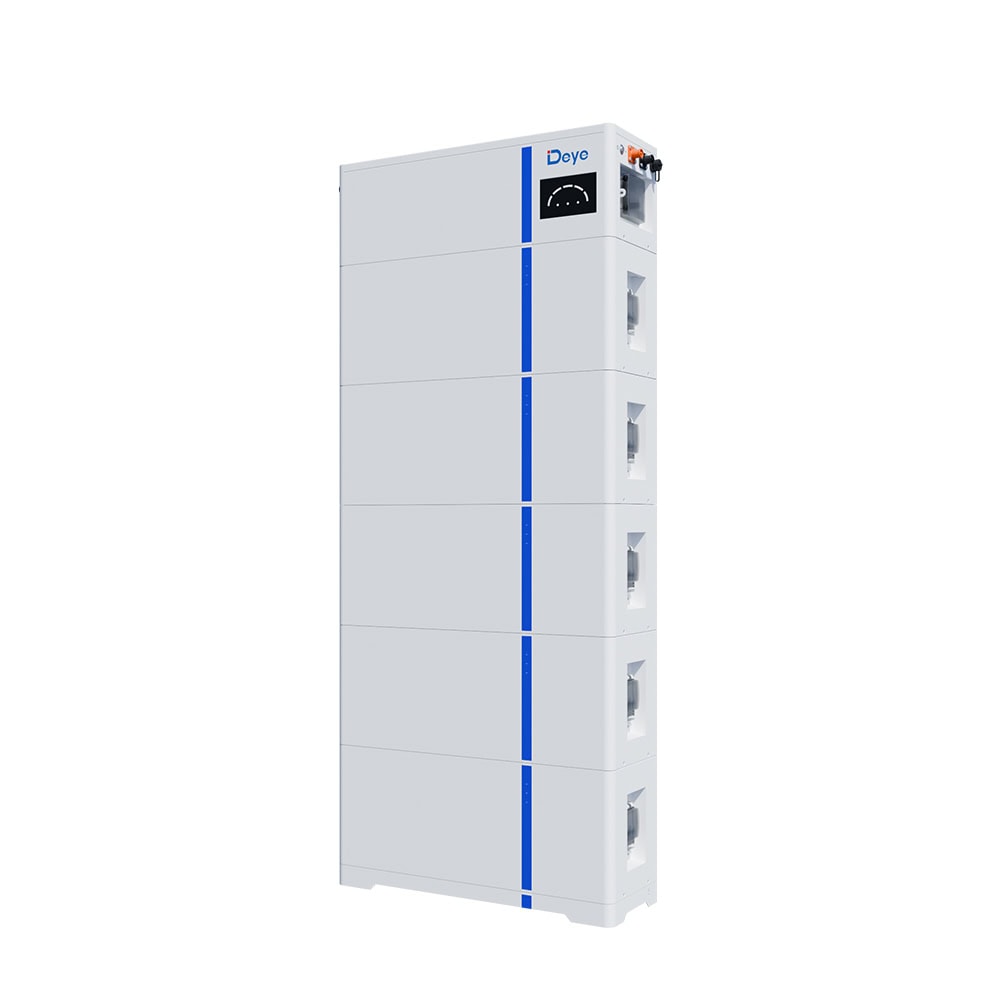

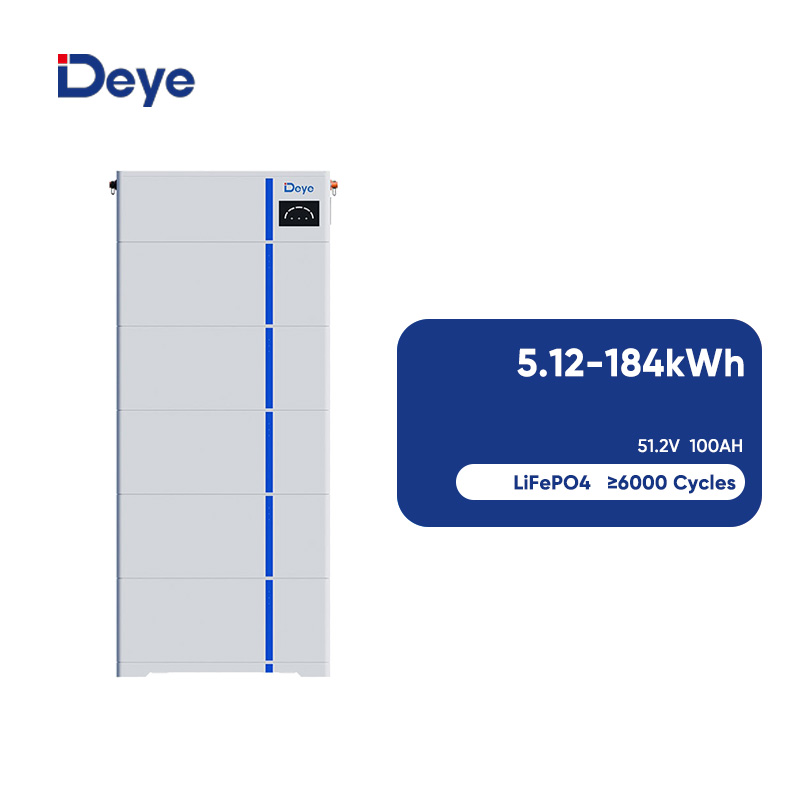

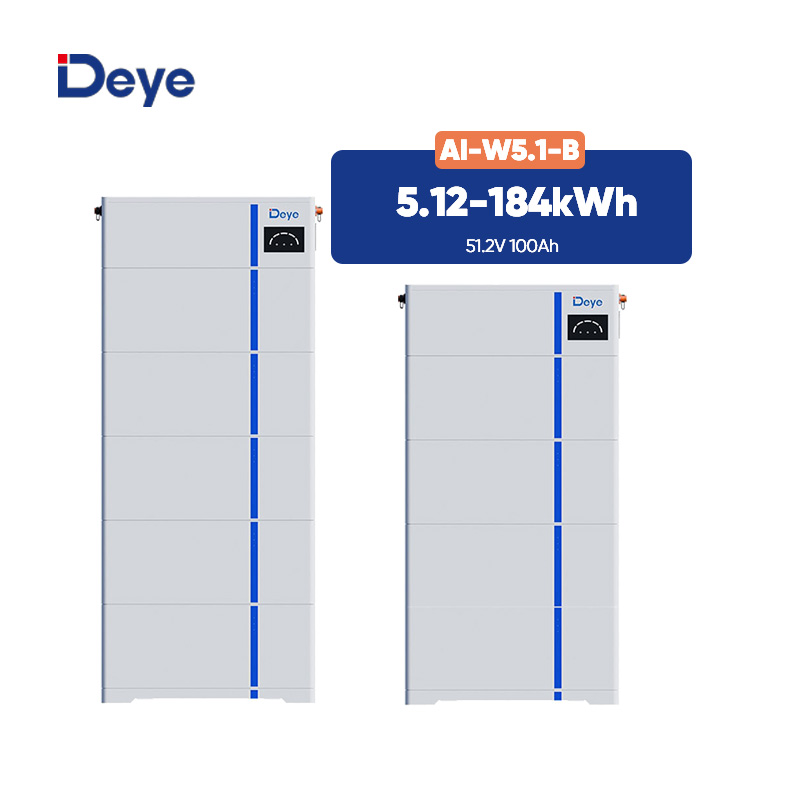

AI-W5.1-B lithium phosphate battery is one of new energy storage products developed and produced by Deye, it can be used to support realiable power for various types of equipment and systems. Multiple batteries can connect in parallel for larger capacity and longer power supporting duration requirements.
Merknaam :
DeyeType :
Lithium BatteryNominale spanning :
51.2VBatterij capaciteit :
100AHAantal cycli :
6000Efficiëntie van opladen :
0.5CEfficiëntie van ontlading :
0.5CCommunicatie :
CAN2.0, RS485Kleur en OEM :
White&SupportedGarantie :
10 years
Eco-friendly and Safe: Non-toxic, cobalt LiFePO4 chemistry ensures safe operation.
IP65 protection suitable for both indoor and outdoor installations, ensuring durability in harsh conditions.
Integrated Battery Management System (BMS): management and monitoring of charging/discharging to extend cycle life.
Wide Temperature Range: Operates reliably from -30℃ to -60℃ with passive cooling.
Long warranty and long lifecycle: supported by 10-year warranty.

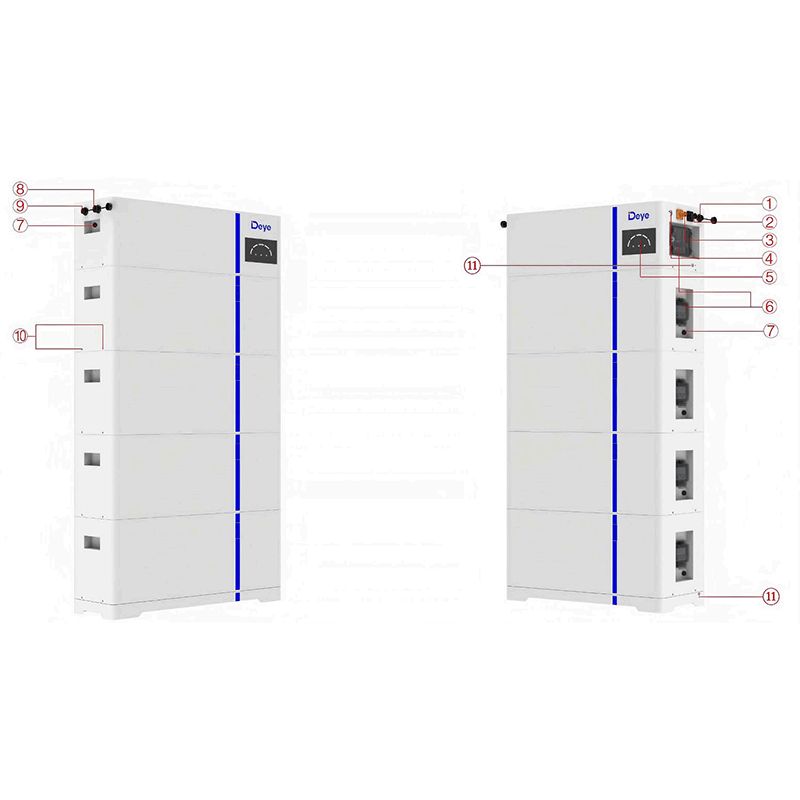

This section shows the interface functions of the front and size panel.
| 1.Parallel communication port IN | 7.Breather valve |
| 2.Battery negative |
8.Parallel communication port OUT |
| 3.Battery positive | 9.Inverter CAN/RS485 port PCS |
| 4.BMS Swich | 10.Screw hole |
| 5.System state indicator | 11.System earthing position |
| 6.PowerCircuit Breaker |

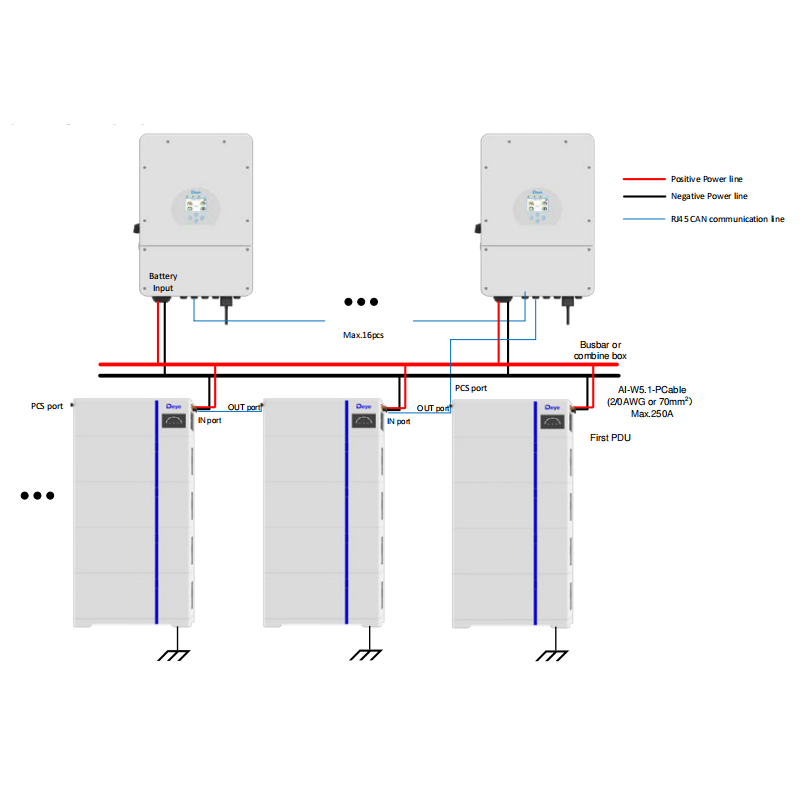

The multiple battery systems is supported.It is suitable for scenarios where the inverter power is 12kw or higher. This configuration enables the parallel connection up to 16pcs.
The pictures on the left show schematic diagram of connection of mutiple batteries system.

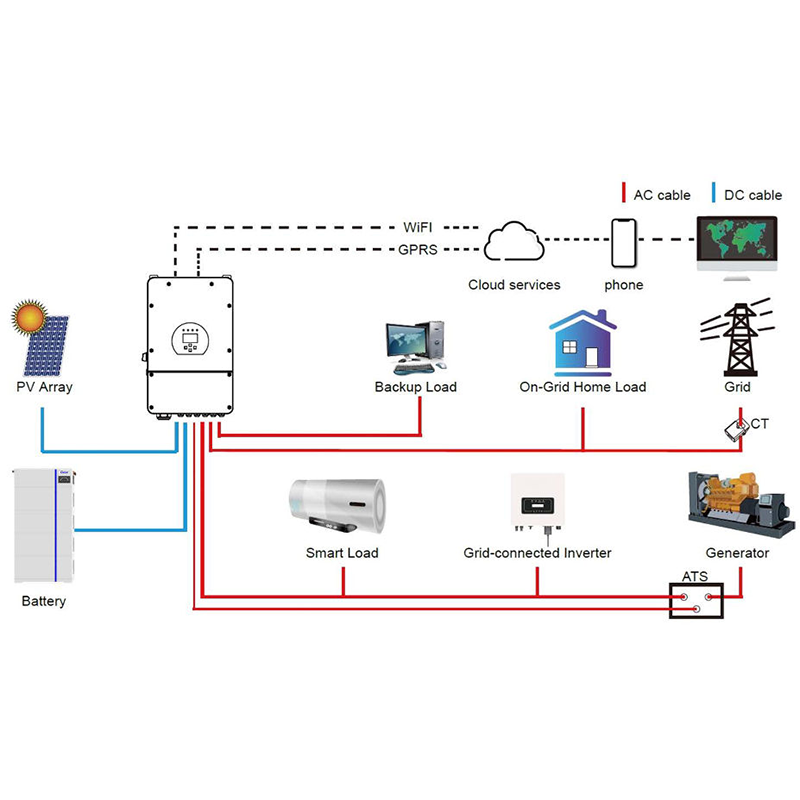

The right picture shows the basic application of this battery.
To form a complete operating system, the following devices are requireded:
A generator or utility grid
PV modules
a low-voltage hybrid inverter (for charging and discharging)
