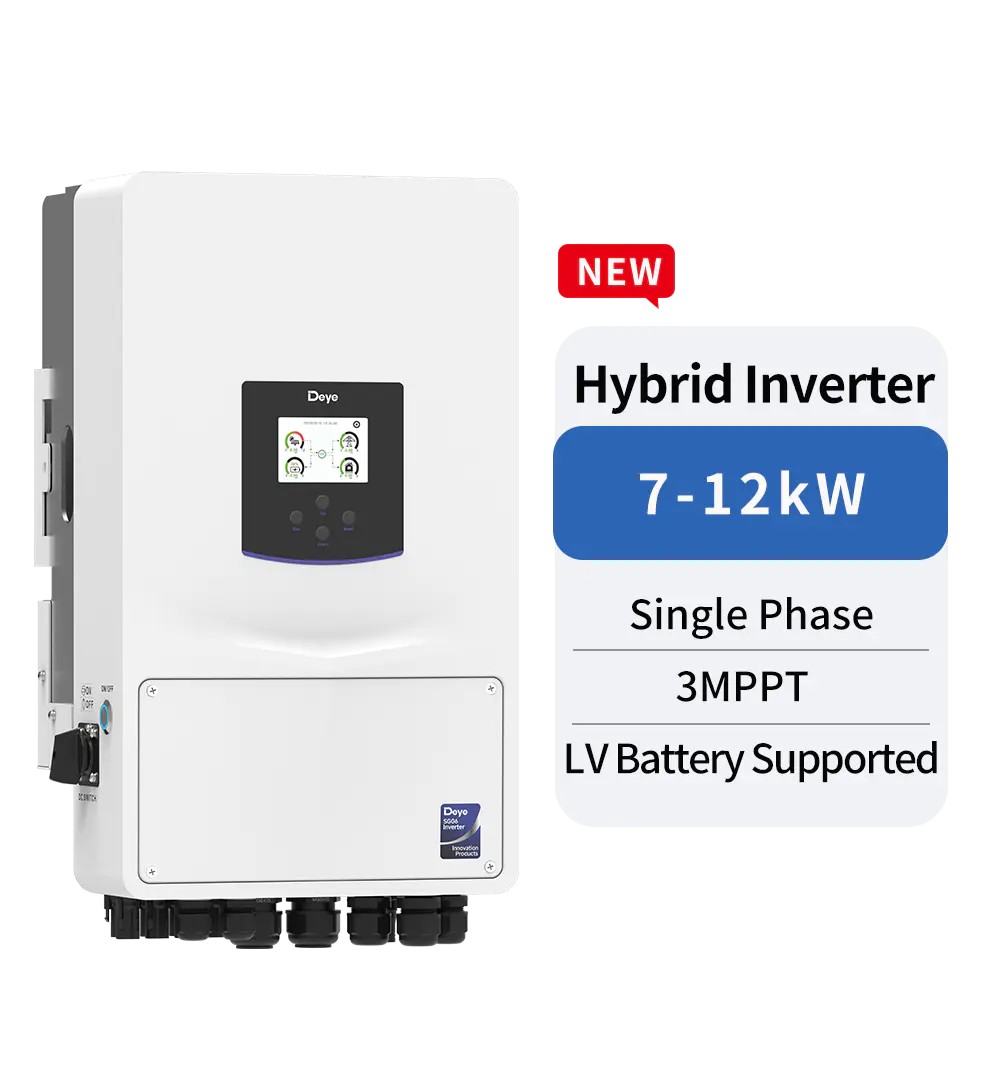

SUN-7/7.6/8/10/12K-SG06LP1-EU-CM3, is new model launched by Deye, compatible with 48-60V 16kwh lithium iron battery wheel solar lifepo4 battery 51.2V . It is a multifunctional Deye hybrid inverter 12kw solar energy storage inverter, combining the functions of an inverter, a solar charger, and a battery charger to offer uninterruptible power support with a portable size. Its comprehensive LCD display offers user‑configurable and easily accessible button operations, such as battery charging, AC/solar charging, and acceptable input voltage, based on different applications.
Merknaam :
DeyeVermogensbereik :
7-12kwWerkingstemperatuur :
-40 to +60℃Communicatie GBS :
WIFI, RS485, CANMax. Efficiëntie :
97.6%Garantie :
5 Years/10 YearsMPPT-efficiëntie :
>99%Geïntegreerd :
DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI) (optional), Anti-islanding ProtectiBeschermingsgraad :
IP65Euro-efficiëntie :
96.5%
1. Self‑consumption & feed‑in with anti‑reverse power limiting, compatible with mains or generator input.
2. Auto restart on AC recovery; programmable for on‑grid, off‑grid, or UPS mode.
3. Adjustable supply priority (battery/grid) and charging priority (AC/solar/generator) via LCD.
4. Configurable charging current/voltage; smart 3‑stage charging optimises battery life.
5. Built‑in dual MPPT trackers for higher solar yield.
6. Time‑of‑use (TOU) and smart load management for efficient energy scheduling.
7. WiFi monitoring and full parameter setting via LCD screen.
8. Complete protection: overload, over‑temperature, and short circuit.

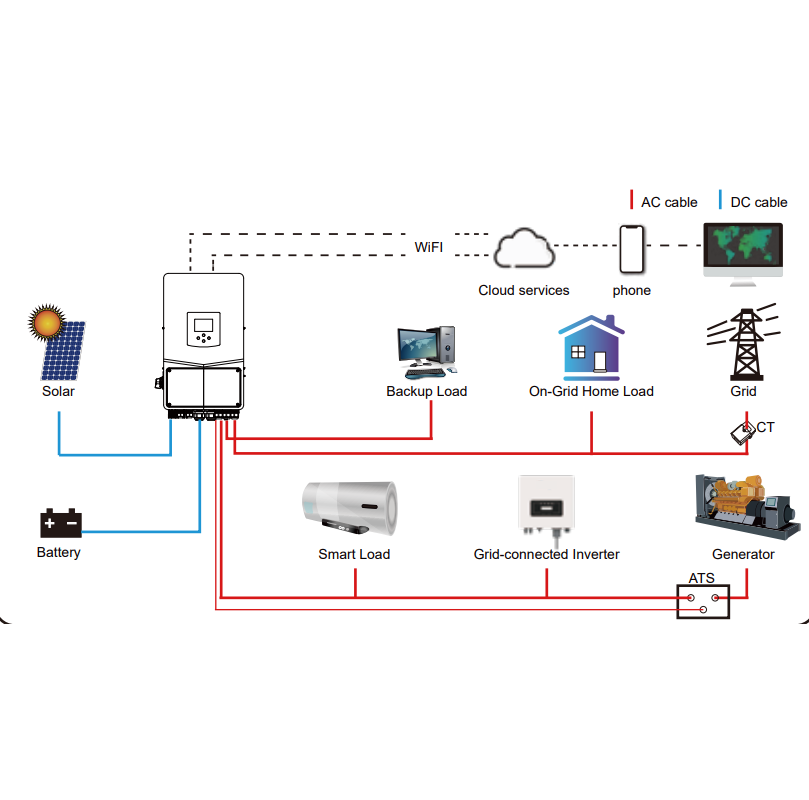

The system accepts DC input from PV modules (solar panels) via the DC cable, and the inverter efficiently converts solar energy into stable AC power to supply all kinds of household and office appliances – including motor‑driven loads like refrigerators and air conditioners.
An intelligent Smart Load function dynamically prioritises power distribution based on user settings. The on-grid solar inverter works in harmony with the utility grid or a generator (via the ATS – Automatic Transfer Switch), ensuring smooth transitions between solar, Deye lithium battery 16kwh RW-F16 51.2v for solar energy storage, grid, and backup sources. Critical Backup Load circuits remain powered even during outages. A battery connection supports energy storage for peak shaving, valley filling, or off‑grid backup, while AC cables link the grid and loads to complete the power loop.

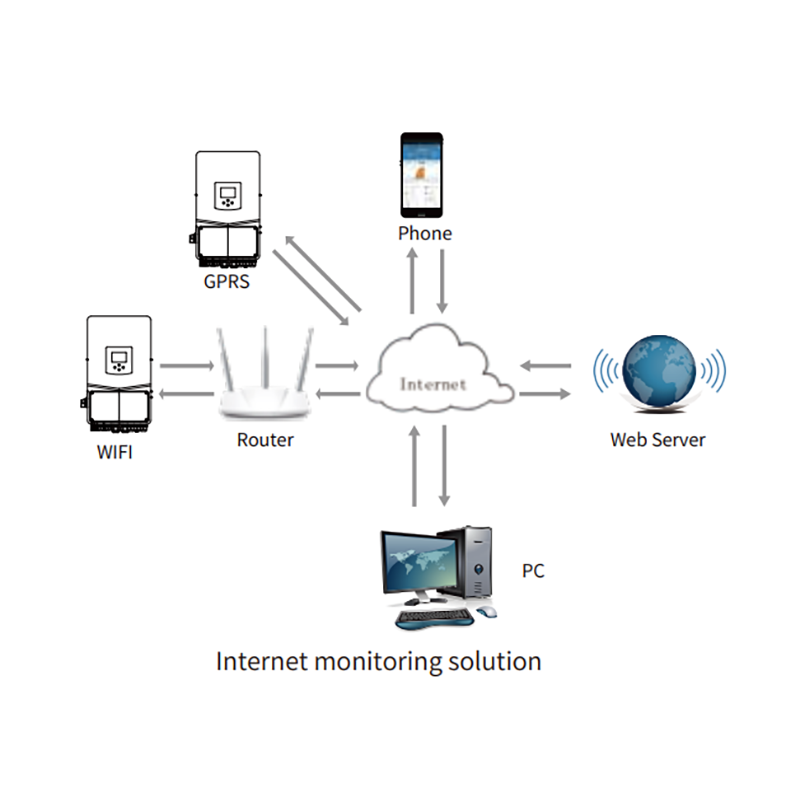

Real‑time monitoring is at your fingertips via WiFi or the mobile Phone app, with Cloud services enabling remote diagnostics, firmware updates, and data analytics. The built‑in ATS guarantees millisecond‑level switching to generator or battery power when utility fails, safeguarding your essential equipment.
The illustrations shows a basic application architecture. For more advanced setups – such as expanded storage, specialised load profiles, or hybrid energy inputs – please consult your system integrator to tailor the solution to your specific needs. Whether you are grid‑tied for self‑consumption, off‑grid for backup, or combining solar+storage, this inverter delivers reliable, clean, and intelligent power protection.

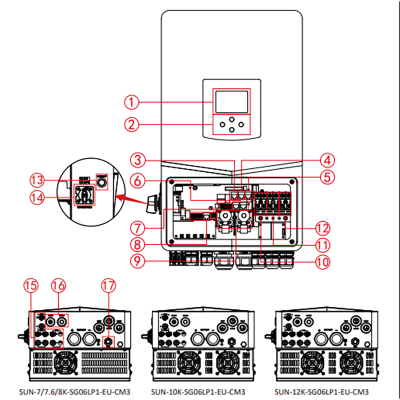

The SUN‑7K/7.6K/8K/10K/12K‑SG06LP1‑EU‑CM3 inverters feature clearly numbered connection ports (1 to 17). The table below lists each port's corresponding name and function, making installation, wiring, and maintenance quick and straightforward.
| 1: LCD display | 9: Battery input connectors |
| 2: Function Buttons | 10: Generator input |
| 3: Modbus Port | 11: Load |
| 4: BMS 485/CAN Port | 12: Grid |
| 5: Meter Port | 13: Power on/off button |
| 6: Parallel port | 14: DC Switch |
| 7: Function Port | 15: PV input |
| 8: RSD and DRM ports | 16: Communication cable inlet |
| 9: Battery input connectors | 17: The outlet of antenna |
