The 126kW / 215kWh Battery Energy Storage System (BESS) is a fully integrated power solution combining a high-efficiency 126kW PCS with a long-life 215kWh LiFePO4 battery pack. Designed for commercial, industrial, and microgrid applications, the system delivers reliable backup power, peak shaving, load shifting, and seamless renewable energy integration. With advanced BMS + EMS control, outdoor-ready design, and strong safety protection, it provides stable, efficient, and flexible energy storage for various scenarios.
Merknaam :
SAIL SOLARproduct Model :
126kw/215kwh BESSType batterij :
Lifepo4Garantie :
10 yearsBatterij voltage :
650-864VBeschermingsgraad :
IP65Uitgangsspanning (V) :
220v/380v;230v/400vMax. ingangsgelijkstroomspanning (V) :
1000VUitgangsfrequentie :
50hz/60hzOmvormertype :
126kw PCSMaat: :
1460*2203*1400
The 126kW / 215kWh BESS features a powerful 126kW bi-directional PCS capable of managing energy flow between the grid, battery, solar PV, and connected loads. Paired with a 215kWh high-density LiFePO4 battery system, it ensures over 6000 cycles, excellent thermal stability, and superior safety standards for long-term operation.
Engineered for commercial and industrial users, this all-in-one system supports peak load shaving, energy arbitrage, backup protection, and microgrid functionality. The integrated BMS provides cell-level monitoring and protection, while the EMS delivers intelligent scheduling, real-time data visualization, remote control, and optimized energy dispatch.
✔ 126kW High-Efficiency Bi-Directional PCS
Enables fast charging/discharging, grid interaction, solar integration, and smooth power conversion for all operating modes.
✔ 215kWh Long-Life LiFePO4 Battery Pack
Premium-grade cells deliver over 6000 cycles, excellent thermal stability, and enhanced safety for long-term performance.

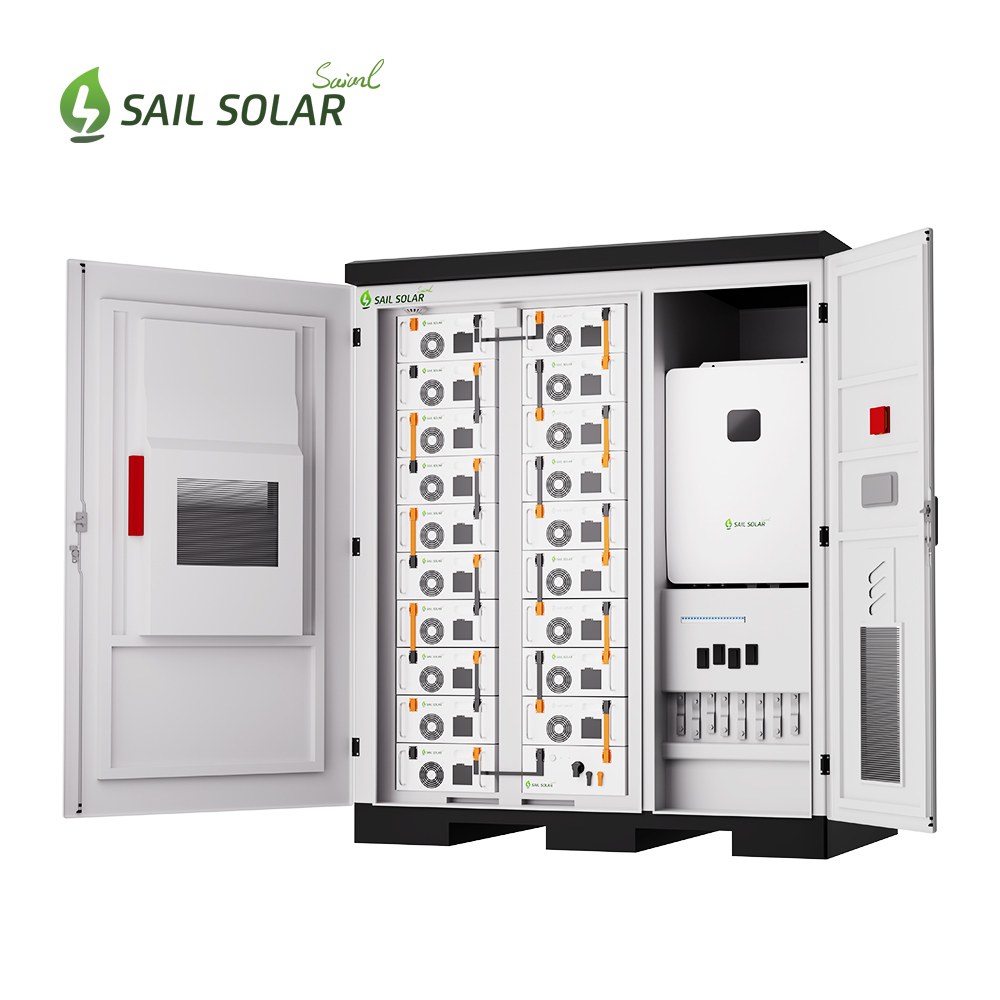

✔ All-in-One Energy Storage Cabinet
Integrated PCS, battery modules, BMS, EMS, cooling, and protection systems in a single outdoor-ready enclosure.
✔ Advanced BMS + EMS Intelligent Control
Provides real-time monitoring, load management, peak shaving, energy scheduling, fault alarms, and remote control.
✔ Reliable Backup Power for Critical Loads
Ensures uninterrupted power during grid outages, ideal for commercial buildings, factories, telecom sites, and microgrids.
✔ Seamless Solar PV Integration
Supports hybrid operation with rooftop or ground-mounted solar systems for greater renewable energy usage.
✔ Modular, Scalable & Easy to Install
Plug-and-play design simplifies deployment and allows system expansion to larger capacities.

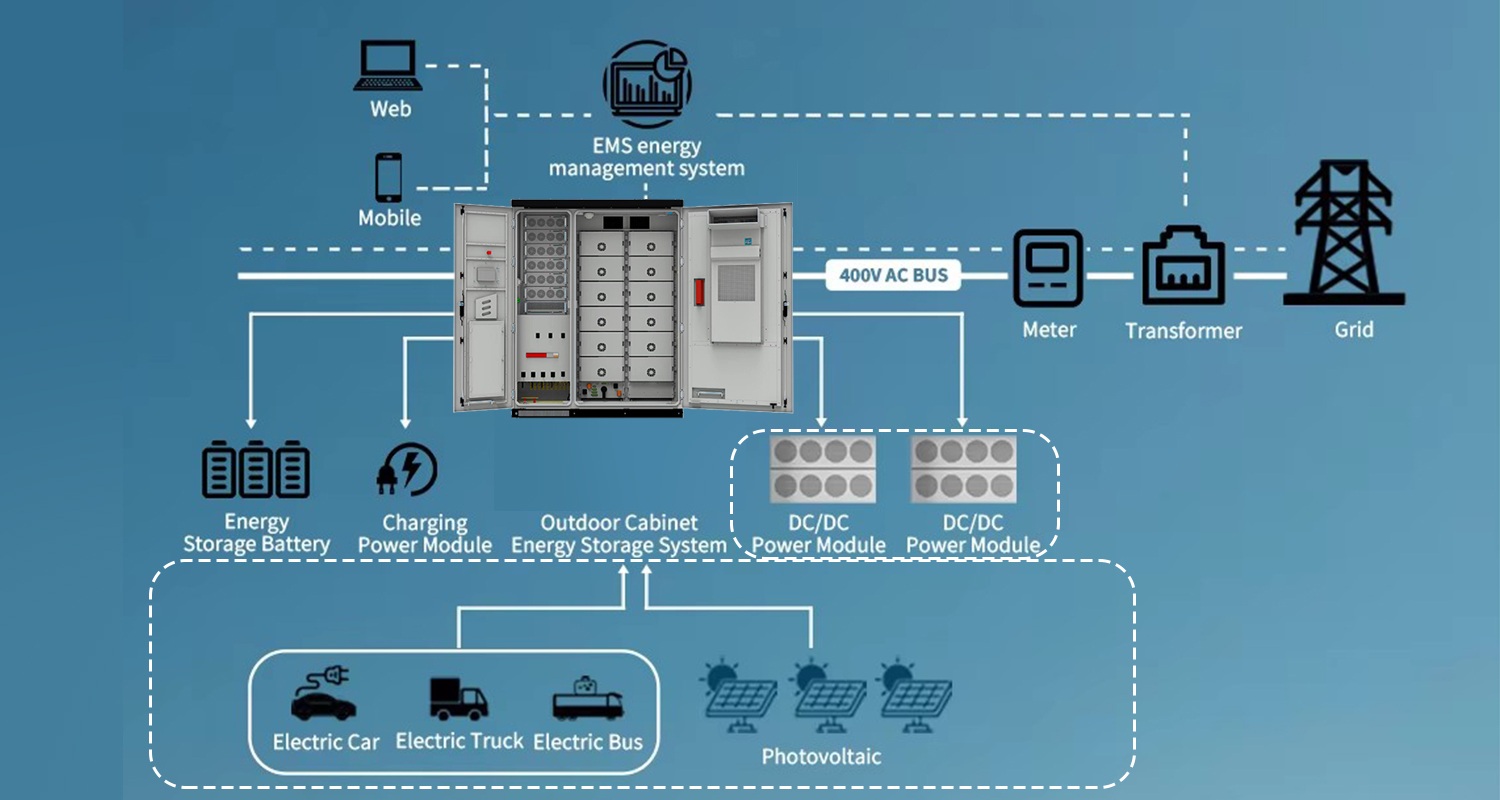

The system wiring diagram illustrates how the 126kW/215kWh BESS connects seamlessly with solar PV, the utility grid, and AC loads to form a complete hybrid power solution. Solar panels deliver DC energy to the PCS, which converts and distributes power to charge the 215kWh LiFePO4 battery pack or supply electricity directly to the load. During grid outages or peak demand, the PCS automatically discharges from the battery to ensure stable and uninterrupted power. When solar generation is insufficient, the system draws energy from the grid. The integrated BMS and EMS work together to manage protection, power flow, and energy optimization across all components. This layout provides a clear understanding of the system’s operating structure and energy pathways.
