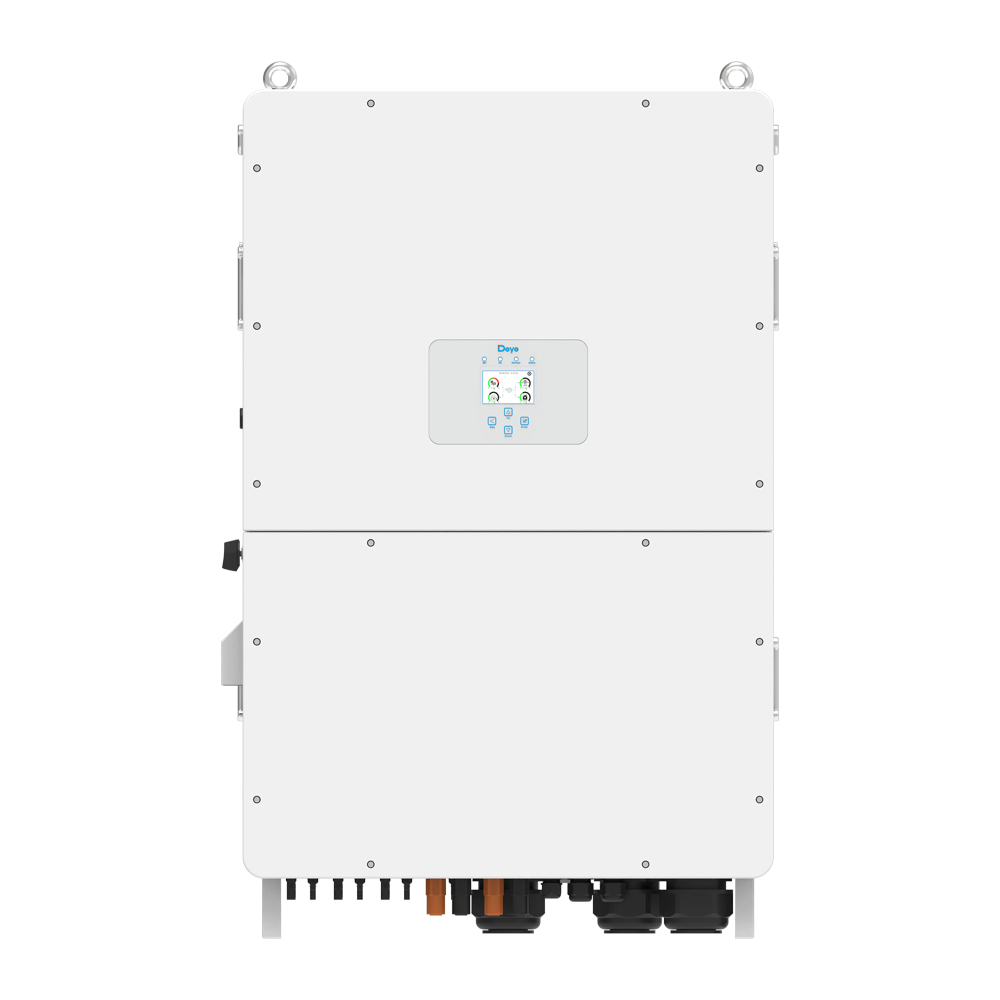

This series is a representative product of Deye's household low-voltage three-phase hybrid inverter. Multiple MPPTs and twice the PV input power maximize the performance of the inverter.
Merknaam :
DeyeModel-ID :
SUN-12K-SG04LP3-EUType batterij :
Lead-acid or Lithium-ionBatterij voltage :
40-60Garantie :
5 yearsMPPT-spanningsbereik (V) :
200-650Type koeling :
Intelligent air coolingFormulier voor netaansluiting :
3L+N+PECommunicatie-interface :
RS485/RS232/CANKastgrootte (B*H*D) :
422×658×254Gewicht [kg] :
38
Product Guarantee:
For Grid Regulation
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98,G99, VDE-AR-N 4105
For Safety EMC/Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Run Mode
Battery First: PV power is firstly used to charge the battery and then used to power the load. If PV power is insufficient, grid will make supplement for battery and load simultaneously.
Load First: PV power is firstly used to power the load and then used to charge the battery. If PV power is insufficient, Grid will provide power to load.
Max Solar Power: allowed the maximum DC input power.
Grid Peak-shaving: when it is active, grid output power will be limited within the set value. If the load power exceeds the allowed value, it will take PV energy and battery as supplement. If still can't meet the load requirement, grid power will increase to meet the load needs.
Complied standards:
IEC 61010-1:2010《Safety requirements for electrical equipment for measurement, control and laboratory use Part1:General requirements》
IEC 61326-1:2013 《Electrical equipment for measurement, control and laboratory use –EMC requirements Part1:General requirements》
